Free Software To Learn Concepts of Fluid Pressure And Flow

Editor Ratings:
User Ratings:
[Total: 1 Average: 4]

Fluid pressure and flow is free Java based software for learning about fluid pressure at different heights and effect of pressure at stream of fluid flow. Using Fluid pressure and flow you can see how the pressure changes when you increase the amount of fluid in a tank, when fluid path is bent, and when fluid tank height is changed.

I have tested the Fluid Pressure And Flow in Windows 7 and it just worked awesome for me. I was able to see the variation in the pressure at different level of the fluid in the simulation for the height, depth, and different bents of the tube. Below I have posted a small simulation for the fluid flow inside the tube. The tube shape can be easily customized to see different variations in pressure.

Understanding Fluid Pressure And Flow:

It is very simple to use the Fluid Pressure And Flow software. All you have to do is select the type of simulation you want to see for the fluid pressure and flow. To see the fluid nature under the height, weight, and fluid flow, you have 3 cool simulation options which are:

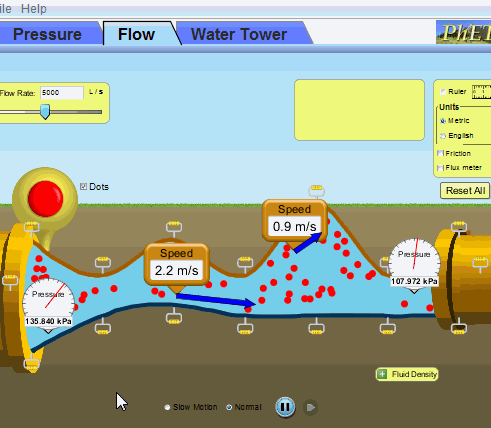

Flow: I have already posted a cool simulation of the Fluid Flow above. Well, it’s a cool simulation and you can easily understand how the fluid would flow at different sections of the tube. You can bend and expand the different sections of the tube to see the behaviour of the fluid flow.

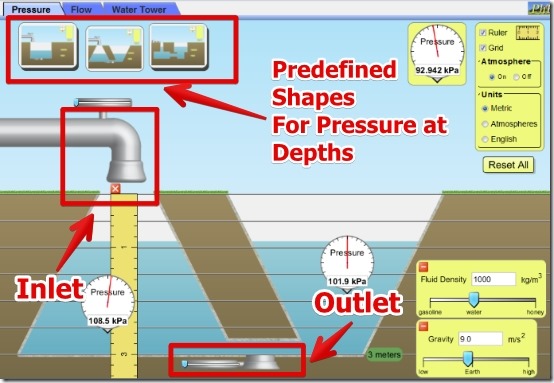

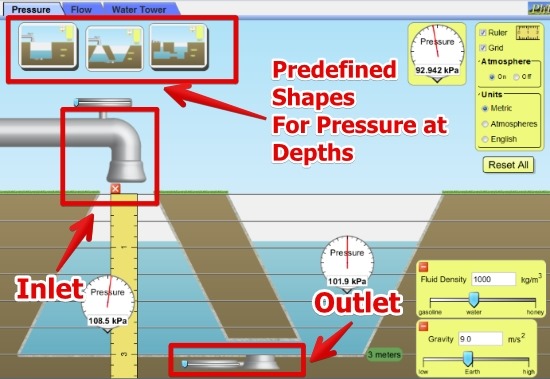

Pressure: In this option you can test the pressure at different depths for three predefined shapes. You can also test the water pressure for different weights. Its an interesting feature to try out for different weights. You can vary the fluid density and gravity and see how the fluid pressure changes. I have posted an image for the Inlet and outlet option to see the variation in pressure at different depths.

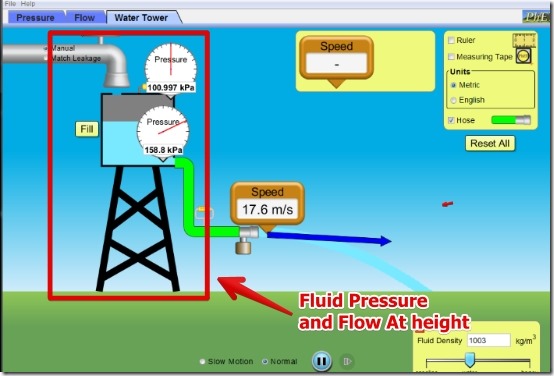

Water Tower: If you want to test the flow and speed of fluid at different heights then you can simulate that in this option. This simulation also answers why the water tanks are placed at good heights.

Features of Fluid Pressure And Flow:

  • Very interactive and simple interface.
  • Option to check the pressure at different levels of:
    • Height
    • Depth
    • Bent
  • 2 Pressure meters: The pressure meters can be placed anywhere on the fluid to see the pressure at that particular level.
  • Option to check the speed of the fluid flow using speed meter.
  • Flux Meter and Friction Control.
  • Option to control Gravity.
  • Option to control the Fluid Density.
  • Completely customizable simulation as the height, flow, and weight can be changed to see different effects.
  • Option to view ruler and measuring tape.
  • Option to reset all.

You might also want to try out Generator Software. It is an awesome software for learning basics of Electricity generation and Magnetism.

Final Verdict:

Fluid pressure and flow is an awesome software for learning about the Fluid Flow and Pressure. What I really liked that it is really easy to use the Fluid Pressure And Flow and the concepts are explained in really simple way. If you want to learn about the Fluid Pressure And Flow and I would recommend you to try it out.

Editor Ratings:
User Ratings:
[Total: 1 Average: 4]
Works With: Windows
Free/Paid: Free
