KPEdit: Free Animation Creator To Create Skeletal Animation

Editor Ratings:
User Ratings:
[Total: 0 Average: 0]

KPEdit is a free animation editor used to create skeletal animations. It is made as an alternative to motion captures. Using it you can create skeletal animations for 3D characters and then, export the animations in *.json file format or, render a stick-man animation using the export option.

It is a handy tool for animators, as motion capture systems are expensive. Using it you can manually add the points, create a stick man type skeletal, and animate it frame by frame. You can create an animation from a scratch, or you can import a video into the freeware and then draw on it and use it as a reference for the animation.

Here is a simple animation I created using this animation creator (note: output below is from a Video to gif software, to convert recorded animation video to gif).

KPEdit Animation

The freeware consists of various handy tools and options, which can help you throughout the animation creating process. For example: you can can add multiple points and frames, move points position frame by frame, select-delete points, duplicate frame, delete frame, import video (to be used as reference), change frame interval, play, pause, rewind animation, jump to next/previous frame, rearrange frame, link points, enable previous frame hint(for creating better animation), interpolate (auto-insert multiple frames and points between two point positions and frames), and lot more.

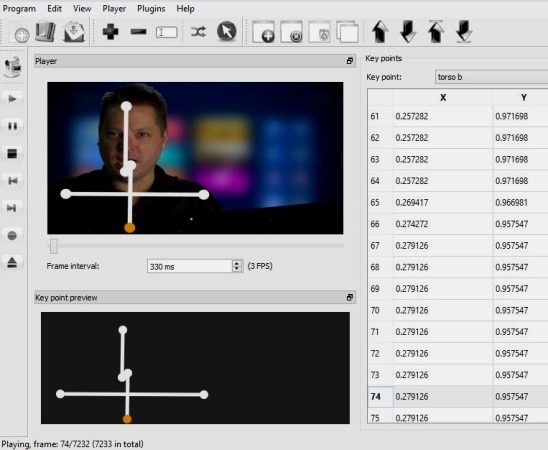

KPEdit.jpg - using video as refrence

Create, edit, and save skeletal animations using this animation editor:

KPEdit is a good alternative to motion capture systems. Using it you can create some good skeletal animations, that can be later used in 3D animation software. However, the complete process of creating skeletal animation does take time, because you have to create animations part by part. That is, creating animations for hands, legs torso, head  etc. separately and then compiling them together. It’s a long process.

Using the freeware is easy and you can find some video tutorials on how to create animations in KPEdit in it’s website. Like every other animation software, this animation editor is also based on frames and points concept.

KPEdit.jpg - adding points and tool bar

You’ll start with adding frames, and then points. There are buttons for these in toolbar. Then, you have to simply change the position of points frame after frame. Good thing is, the freeware lets you view the position  of points in previous frame, making it easy to figure out where to place the points in current frame. To enable it, go to View menu and enable Previous Point Hint option.

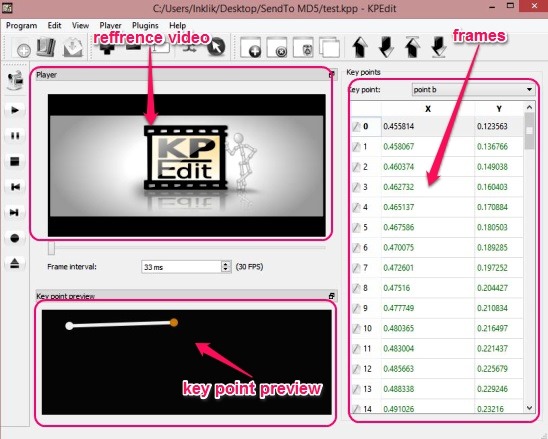

KPEdit.jpg - 3 panes

The interface is basically divided in 3 main panes: Video playback and reference pane, key point preview pane, and frame list pane. You can draw on both: video playback and key point preview pane.

To make use of a video as a reference for the animation, simply import desired video (click Open video button in far left side of interface), add point, play the video, and draw on top of it by continuous clicks. To help you get a proper control over animation drawing, you can slow down the playback speed. Simply enter a suitable playback speed in Frame interval text box and press enter. The freeware automatically creates frames as the video gets played and adds the points you drew, frame after frame.

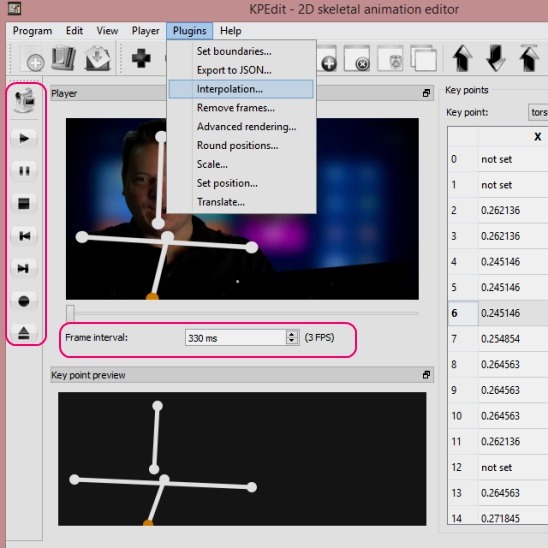

KPEdit.jpg - plugins meu, playback controls, and framerate delayer

Finally, simply connect the points (click on Manage Connection in tool bar) to make a final point skeleton, and then preview the animation by clicking on Play button. Use different options present under Plugin menu to make the animation even better.

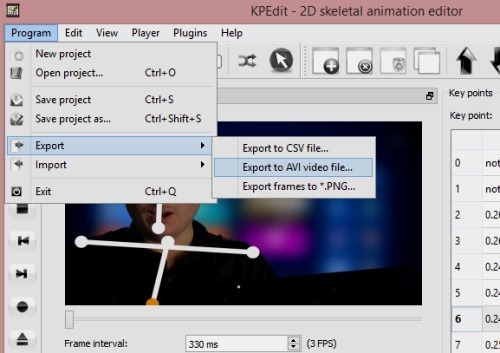

KPEdit.jpg - exporting animation

Once done, you can save the project as KPP (KPEdit file), or export it as CSV, avi, or ong file format.

Key features of this free animation editor:

  • Free.
  • Good skeletal animation editor.
  • Create skeletal animations using point, joining them, adding frames, and moving points frame after frame.
  • Import locally saved video to be used as reference.
  • Good point editing and frame editing features.
  • Watch preview.
  • Save, open project or export it as avi, csv or ong file format.

Also check out these two cool animation software: Adobe Edge Animate and Pixelaria.


KPEdit is a good skeletal animation editor. It’s functional, small sized, easy to use, and doesn’t uses too many resources. Moreover it’s practical. All in all, worth a try.

Get KPEdit here.

Editor Ratings:
User Ratings:
[Total: 0 Average: 0]
Works With: Windows
Free/Paid: Free
